Basic Info.
Model NO.
1kV/1000A
Structure
Post Insulator
Type
A Type Insulator
Usage
High Voltage Power Transmission, Insulation, Electrical Installation
Connection Method
Trough Type
Certification
CE, ISO9001
Color
Grey
Brand
OEM
Feature
High Temperature Resistance
Craftsmanship
APG
Advantages
Good Insulation
Lead Time
25-20days
Transport Package
Wooden Box (Can Be Customized)
Specification
Customized
Origin
China
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
22.00cm * 28.00cm * 30.00cm
Package Gross Weight
25.000kg
Product Description

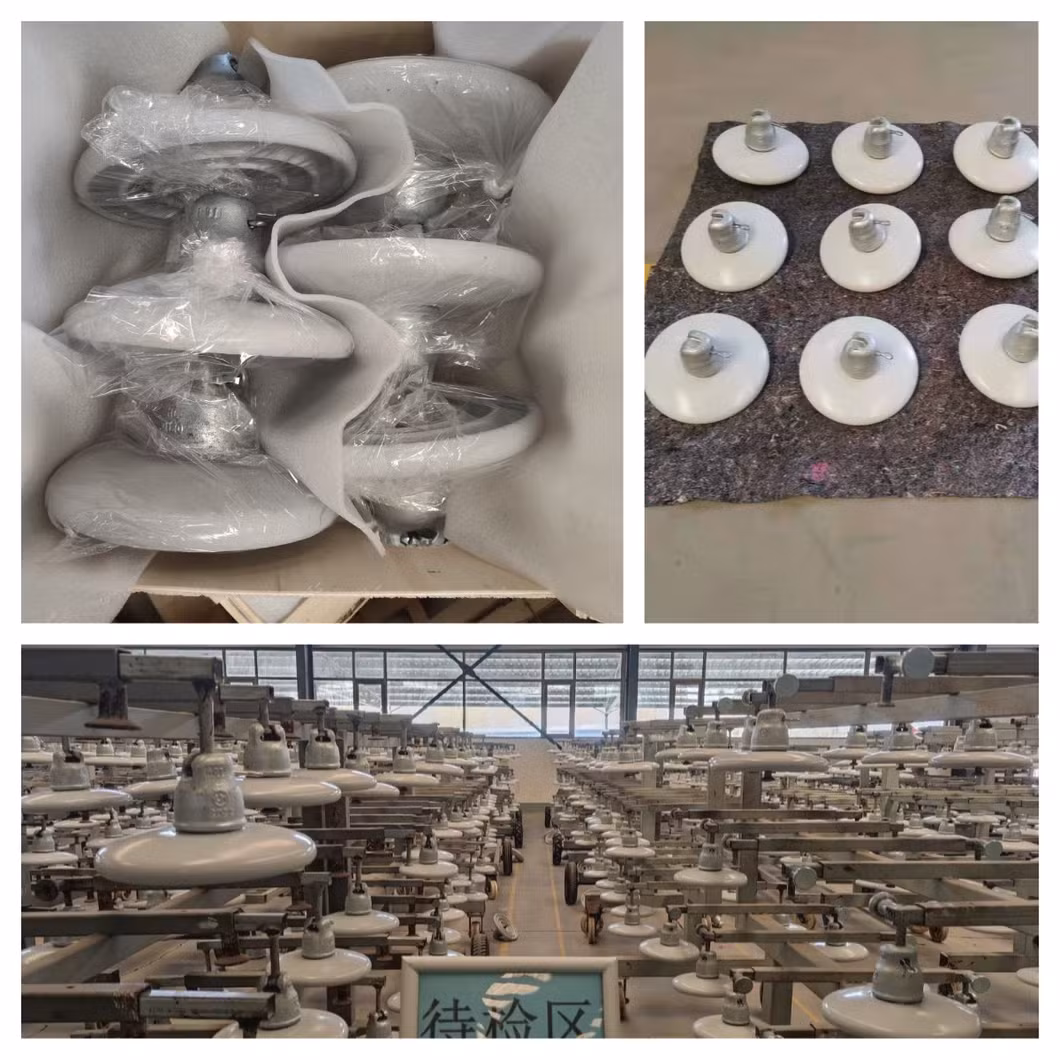

Gray glazed porcelain insulator is a type of insulator, mainly made of porcelain material with gray glaze on the surface. It is widely used in power facilities such as high-voltage and ultra-high-voltage transmission lines and substations to play a supporting and insulating role.
Weshare is the leading manufacturer of distribution transformer bushings and connectors in China.
We are one of the leading manufacturers and suppliers of transformer and switchgear components for the world market.
Weshare supplies porcelain and epoxy bushings, distribution, and power transformer components.
Our bushing type include DIN / EN / ANSI / AS / BS type.
NOTE: Our transformer flags are available individually, as well as porcelain insulator and transformer flag combinations.
| Product code | Model-Voltage/Current | Size (mm) | Weight(kg) | ||||||||
| A | B | C | D | D0 | D1 | D2 | D3 | E | |||
| YC.286.2530.3 | 1kV/1000A | 258 | 56 | 28 | M30*2 | Φ56 | Φ90 | Φ110 | Φ90 | 10 | 4.9 |
| YC.286.2539.3 | 3 kV/1000A | 288 | 76 | 28 | M30*2 | Φ56 | Φ110 | Φ110 | Φ90 | 10 | 5.8 |
| YC.286.2530.4 | 1kV/2000A | 340 | 61 | 40 | M42*3 | Φ70 | Φ104 | Φ125 | Φ104 | 15 | 11.7 |
| YC.286.2539.4 | 3kV/2000A | 370 | 81 | 40 | M42*3 | Φ70 | Φ125 | Φ125 | Φ105 | 15 | 13.0 |
| YC.286.2530.5 | 1kV/3150A | 373 | 65 | 45 | M48*3 | Φ90 | Φ125 | Φ150 | Φ125 | 15 | 15.8 |
| YC.286.2539.5 | 3kV/3150A | 403 | 85 | 45 | M48*3 | Φ90 | Φ145 | Φ150 | Φ125 | 15 | 17.5 |
