Product Description

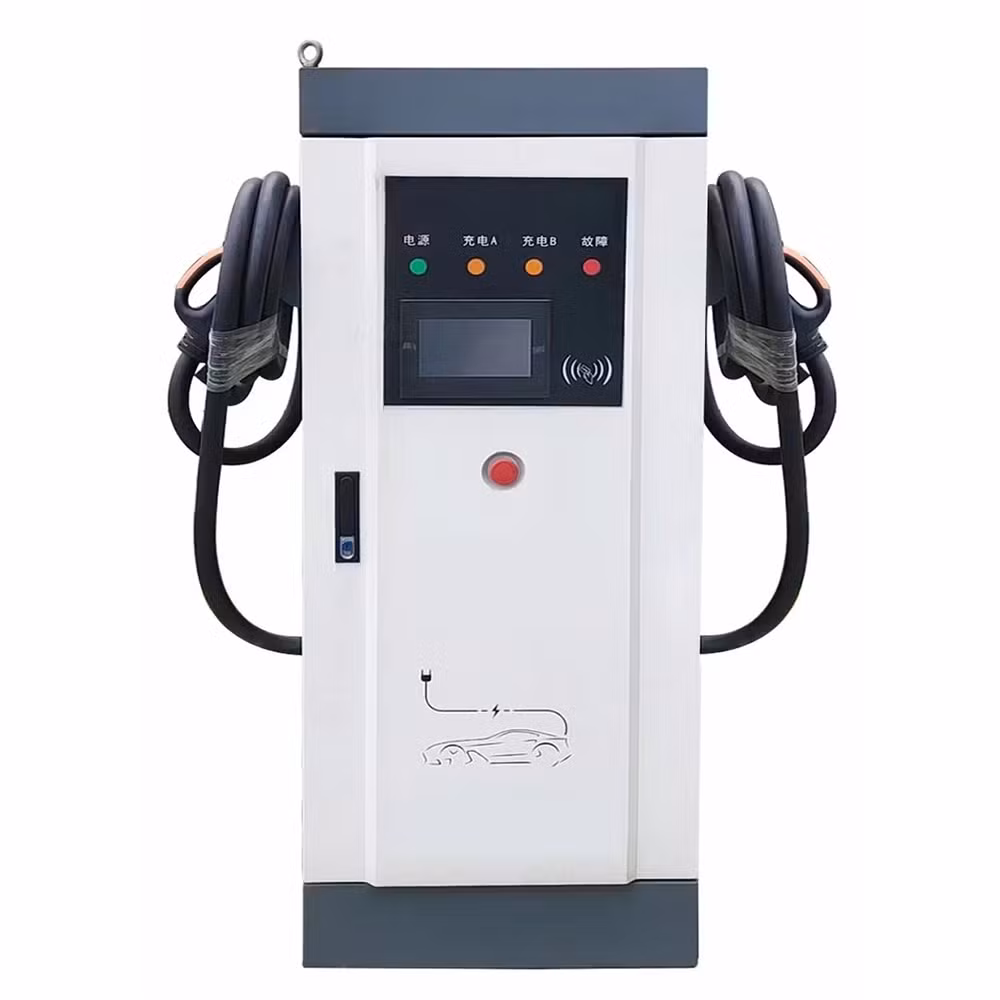

Dc charging pile is a device used to charge electric vehicles, which can charge the battery of electric vehicles at high speed.
Unlike AC charging stations, DC charging stations can transfer electricity directly to the battery of the electric vehicle, so it
can charge faster.
Dc charging piles can be used not only to charge personal electric vehicles, but also for charging stations in public places. In the popularization of electric vehicles, DC charging piles also play a crucial role, which can meet the needs of users for fast
charging and improve the convenience of using electric vehicles.
| Model Name | BHDC-30KW-1 | BHDC-40KW-1 | BHDC-60KW-1 | BHDC-80KW-1 | BHDC-120KW-1 |
| AC Nominal Input | |||||
| Voltage(V) | 380±15% | ||||
| Frequency(Hz) | 45-66 Hz | ||||
| Input power factor | ≥0.99 | ||||
| Qurrent Harmonics(THDI) | ≤5% | ||||
| DC output | |||||
| Efficiency | ≥96% | ||||
| Voltage(V) | 200~750V | ||||
| power | 30KW | 40KW | 60KW | 80KW | 120KW |
| Current | 50A | 80A | 90A | 160A | 180A |
| Charging port | 1 | ||||
| Cable Length | 5M | ||||
| Technical Parameter | ||
| Other Equipment Information | Noise(dB) | <65 |
| Precision of steady current | ≤±1% | |
| Voltage regulation accuracy | ≤±0.5% | |
| Output current error | ≤±1% | |
| Output voltage error | ≤±0.5% | |
| Average current imbalance degree | ≤±5% | |
| Screen | 7 Inch industrial screen | |
| Chaiging Operation | Swipiing Card | |
| Energy Meter | MID certified | |
| LED Indicator | Green/yellow/red color for different status | |
| communication mode | ethernet network | |
| Cooling method | Air cooling | |
| Protection Grade | IP 54 | |
| BMS Auxiliary Power Unit | 12V/24V | |
| Reliability(MTBF) | 50000 | |
| Installation Method | Pedestal installation | |
| Environmental Index | Working Altitude | <2000M |
| Operating temperature | -20~50 | |
| Working humidity | 5%~95% | |
DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places, and can provide fast charging services for electric vehicles. With the popularization of electric vehicles and the continuous development of technology, the application range of DC charging piles will gradually expand.
